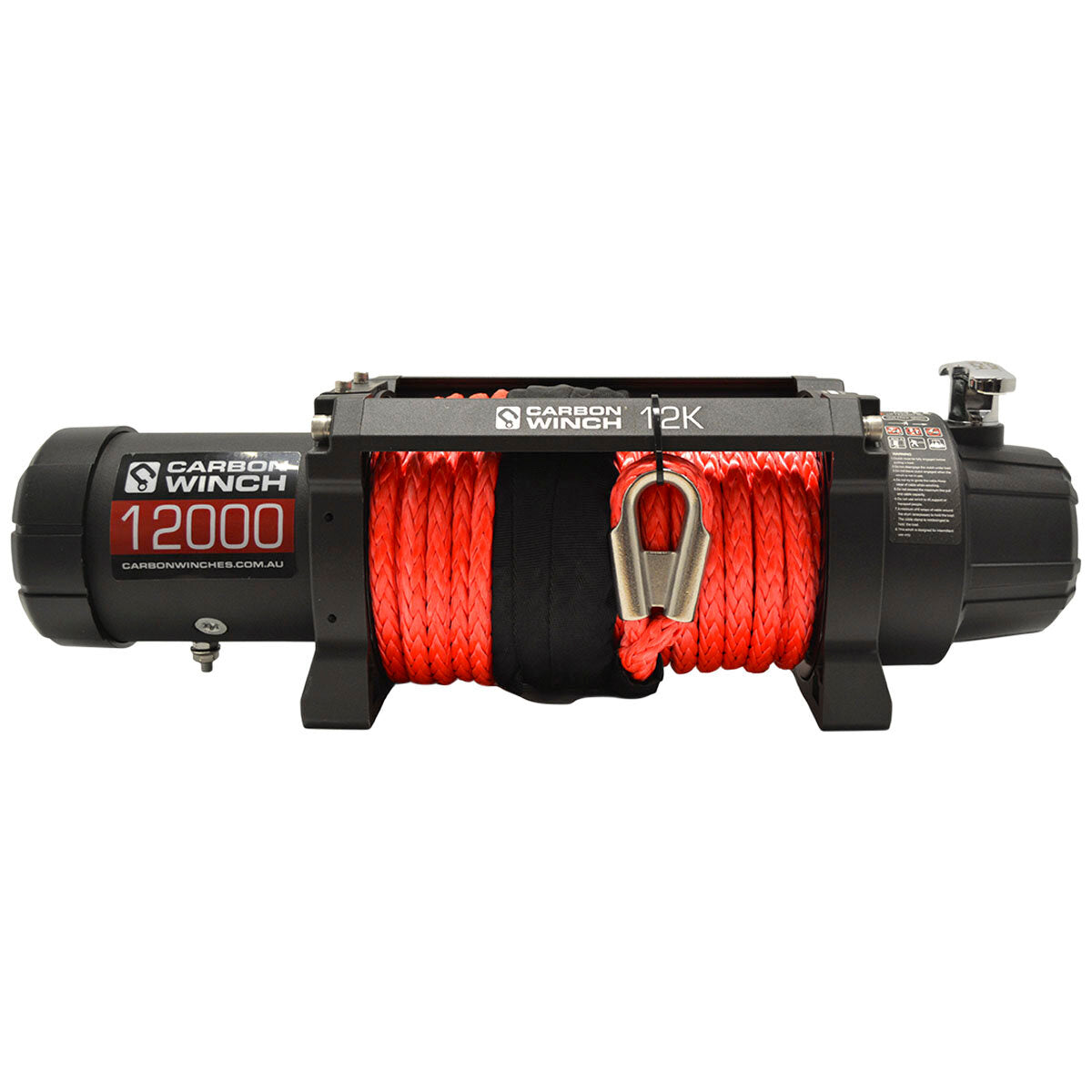

CARBON OFFROAD 4X4 ELECTRIC WINCH 12,000 LBS
CARBON OFFROAD 4X4 ELECTRIC WINCH 12,000 LBS
Regular price
$1,297.98
$1,297.98
Regular price
Sale price
Unit price
per
Sold out
Regular price
$1,297.98
$1,297.98
Regular price
Sale priceShipping calculated at checkout.
The estimated price above includes the product cost from the vendor plus our service fee. The final price for your bill may vary, check FAQ for more details.
Couldn't load pickup availability
Description
Designed by an Australian offroad business for the harsh Aussie and international conditions. Fully sealed to resist water, dirt and dust ingress into motor, drum and gearbox mechanisms. Ver.2 series was upgraded to IP68 ingress protection.12000lb pulling power with a fast line pull ratio of 216:1 using a triple planetary gear set. 6.2HP series wound 12 volt electric motor (24 volt option). The Battery Isolator Switch supplied with the kit must be installed. Would you have a non-isolated or fused battery cable running to the back of your vehicle for towing or other Auxiliary uses? No. The winch is the same, it's power feed must be isolated to protect you and your car in the event of a multitude of unforeseen circumstances that can occur, such as a frontal accident, an unfused 500 amp cable can catch fire extremely fast when shorted out against a body component.
Wireless remote control unit with a lanyard- FULLY SEALED RECEIVER UNIT built into the control box. Simple to activate by holding both buttons down for 3 seconds to activate the remote control and turns off after 90 seconds of inactivity. The Rotating ring gear clutch design is used for easy low drag free spool. This is arguably the easiest winch to free spool on the market. Electroplated planetary gear sets for long life. 3 layer membrane breather unit pre-fitted to the electric motor to allow condensation to evaporate and equalise pressure during heat cycles.Multi Fit Fairlead- there is no need to worry about which suits your bullbar! Simply install as standard fitment or move up to offset the rope outlet by 20mm. All other internals are fully zinc electroplated for corrosion protection.High performance motor brushes with copper impregnated contacts and corrosion plated brush mounts. Smooth ball bearing motor operation with a fully balanced motor armature for superior performance. Utilising a hoist style brake unit mounted to the drum end plate, this provides superior holding power by applying mechanical braking through the gear train with no heat generated in the drum. With no contact to the drum means there is no risk of heat damage to the synthetic rope.4 position mounting for the control box bracket over the motor, over the drum, on top for flat mounting plates and in front of the winch for the top mounting control box when the winch is mounted vertically. Alternatively, 500mm cables allow remote mounting of the control box separately to the winch.
Technical features
Carbon Winches 12K Winch is a 12000lb line pull winch and can meet the rugged demands of off-road and utility use in Australian conditions. It is designed to deliver the best value, reliability and service life for a winch user.
This product features:
Other features:
Wireless remote control unit with a lanyard- FULLY SEALED RECEIVER UNIT built into the control box. Simple to activate by holding both buttons down for 3 seconds to activate the remote control and turns off after 90 seconds of inactivity. The Rotating ring gear clutch design is used for easy low drag free spool. This is arguably the easiest winch to free spool on the market. Electroplated planetary gear sets for long life. 3 layer membrane breather unit pre-fitted to the electric motor to allow condensation to evaporate and equalise pressure during heat cycles.Multi Fit Fairlead- there is no need to worry about which suits your bullbar! Simply install as standard fitment or move up to offset the rope outlet by 20mm. All other internals are fully zinc electroplated for corrosion protection.High performance motor brushes with copper impregnated contacts and corrosion plated brush mounts. Smooth ball bearing motor operation with a fully balanced motor armature for superior performance. Utilising a hoist style brake unit mounted to the drum end plate, this provides superior holding power by applying mechanical braking through the gear train with no heat generated in the drum. With no contact to the drum means there is no risk of heat damage to the synthetic rope.4 position mounting for the control box bracket over the motor, over the drum, on top for flat mounting plates and in front of the winch for the top mounting control box when the winch is mounted vertically. Alternatively, 500mm cables allow remote mounting of the control box separately to the winch.
Technical features
Carbon Winches 12K Winch is a 12000lb line pull winch and can meet the rugged demands of off-road and utility use in Australian conditions. It is designed to deliver the best value, reliability and service life for a winch user.
This product features:
- 6.2 HP Series wound motor
- 216:1 ratio 3 stage planetary gearbox
- Automatic brake in the motor housing drum plate provided load holding through the geartrain not directly on the drum (No heat build up in the drum)
- Rotating ring gear free spool clutch assembly which minimises freespool drag and completely eliminates clutch engagement issues.
- Power in and power out via a plug in hand remote or a wireless remote controller. The remote controller has 90 second auto off and failsafe operation features built in. The receiver is fully sealed and impervious to water.
- 500amp sealed solenoid unit and wired handle remote control and wireless
Other features:
- Part number: CW-12K
- Rated line pull: 12000 lbs, (5450 kg) single-line
- Motor: 12V DC 6.2HP series wound motor
- Remote Control: Remote Switch, 12ft (3.7m) lead.
- Wireless Remote Control: Included
- Geartrain: 3-Stage Planetary.
- Gear Ratio: 216:1
- Clutch (free spooling): Rotating Ring Gear clutch with manual pull and twist clutch handle
- Brake: Full load automatic brake installed in the motor housing end plate. No heat in the drum.
- Drum Diameter/Length: 64mm x 224mm
- Synthetic Rope:24m x 10mm diameter
- Fairlead: Multi-fit CNC billet alloy black anodised with laser etched logo
- Recommended Battery: 650 CCA minimum for winching
- Mounting Bolt Pattern: 254mm x 114.3mm
